Vertical chemical pumpNon self priming typeHD-TFV
-

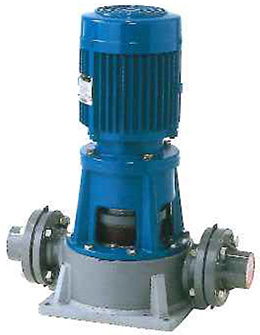

HD-TFV
-
HD-TFV-P
-

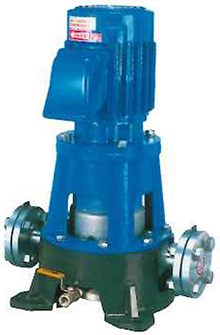

HD-TFV-32
Pump variations
| Model | Main material | Max temp. |
|---|---|---|
| HD-TFV | FRP+HT-PVC | 80℃ |
| HD-TFV-P | PVC+HT-PVC | 55℃ |
| HD-TFV-PH (High press. type) | PVC+HT-PVC | 55℃ |
| HD-TFV-32 | SCS14(SUS316)+PTFE | 80℃ |
| HD-TFV-W | UPE+PVC | 55℃ |
Features
HKS seal equipment
Pump can show high seal performance in operation and stopping.
(What’s HKS seal equipment?)
Chemical resistance
Various of material (PVC/FRP/U-PE/PP/SCS14)
to fit for different chemical liquid.
Installation records
| HD-TFV | waste water treatment (Acid/Acid&Alkali mix.) transfer chemical liquid |
|---|---|
| HD-TFV-P, HD-TFV-PH | waste water treatment (Acid/Alkali) transfer chemical liquid |
| HD-TFV-32 | electroless Ni plating |
Easy maintenance
Possible to inspect pump easily without removing pipes.

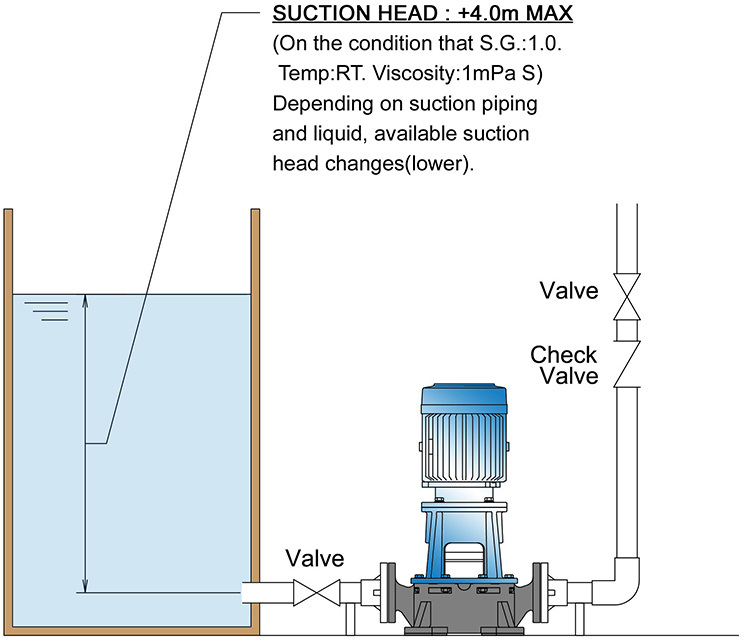

Pump installation example

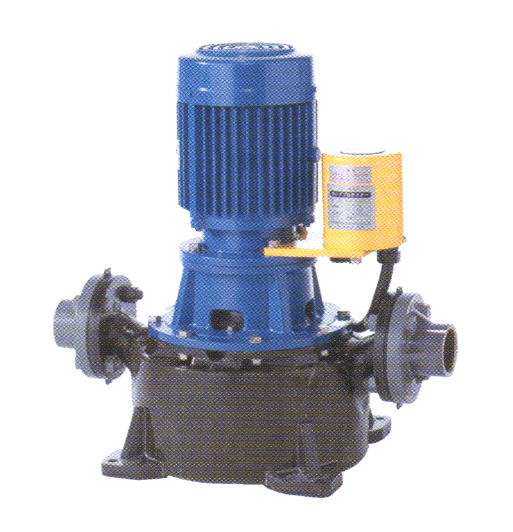

OptionPump protector
[Thermosensitive type]
Features
- For HD-SFV and HD-TFV
- Detection by liquid temp. in the pump casing.
- It can Protect pumps from thermal deformation of pump parts by the following reasons. running with closed valves, blocked pipe or strainer and so on.
- emprature set:
FRP casing 75℃
PVC casing 50℃ - Alarm will be sent easily by using relay.
